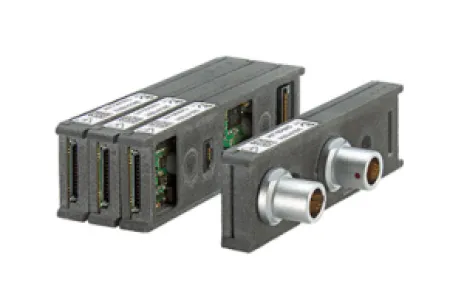

The CVM G5 modules are intended for CVM systems used in research & development, laboratories and test vehicles. The ultra-compact design, tightness and temperature resistance not only allow the use on test benches, but also in harsh environmental conditions in mobile applications such as automotive and navy.

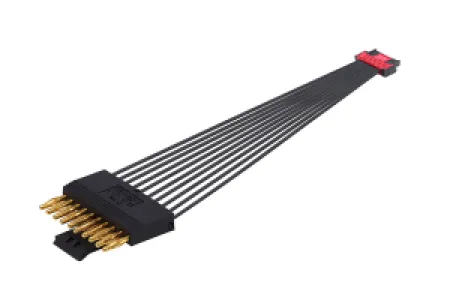

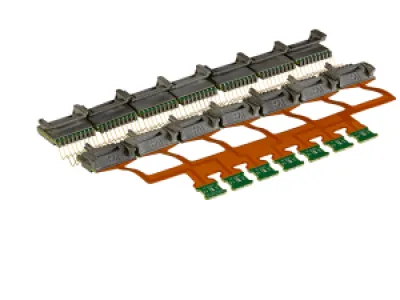

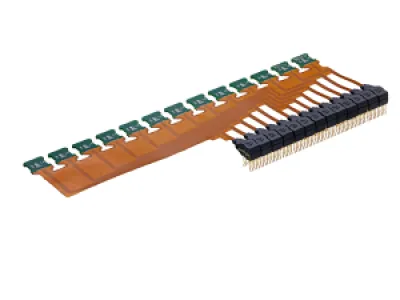

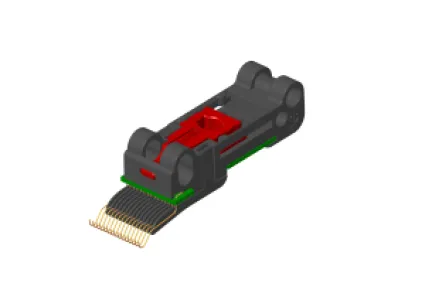

In view of cell spacing of less than 1 millimetre in modern fuel cells, cell contacting poses a particular challenge. Furthermore, the different designs of the fuel cell stacks or electrolysers, whose bipolar plates provide different contact surfaces for harnessing the potential. For this reason there is no standard contacting unit. A CVP is basically an individual development, tailor-made for the electrochemical stack you use. All CVP solutions are characterized by their small footprint and reliable contact properties, especially in mobile applications. Added to this is a design that makes installation as simple as possible. Every stack is different. We will develop the right CVP for you.

Due to their large measuring range, our components are also used in the field of electrolysis. Here they monitor the voltages of the individual cells and thus contribute to process reliability.

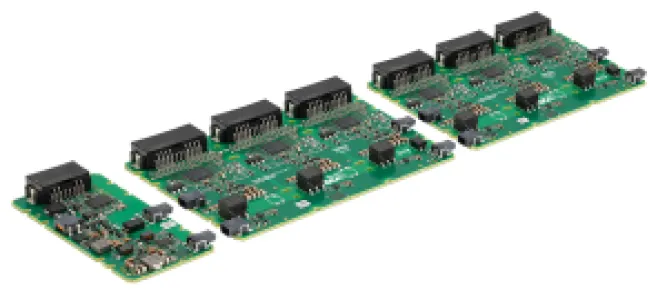

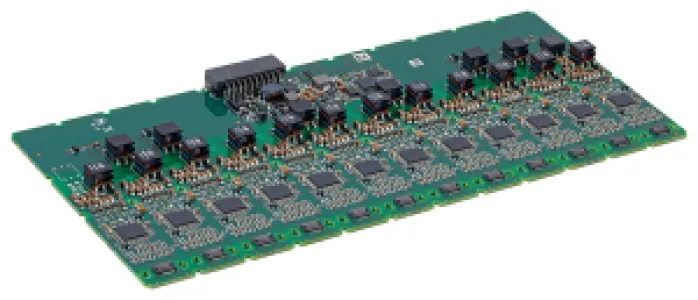

The G6S CVM solution was specially developed for cell voltage monitoring in series applications. It is scalable, allowing both single cell measurements and voltage measurements across two or four cells. The measurement modules are supplemented by a target market-specific head module, which is equipped with the data interfaces prevalent in the respective target market. The head module also offers additional functions, such as measuring the total stack voltage to check the plausibility of the individual values.
